case – VW Semi Auto 1968 rebuild.

The best way to clean parts (just dont tell the misses)

One morning i woke up with an idea. I have been thinking of ways to turn my greasy old motor parts into nice clean motor parts without me needing to get to dirty or smell like petrol for another month 😛

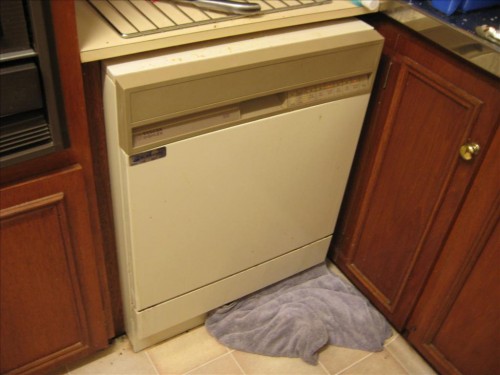

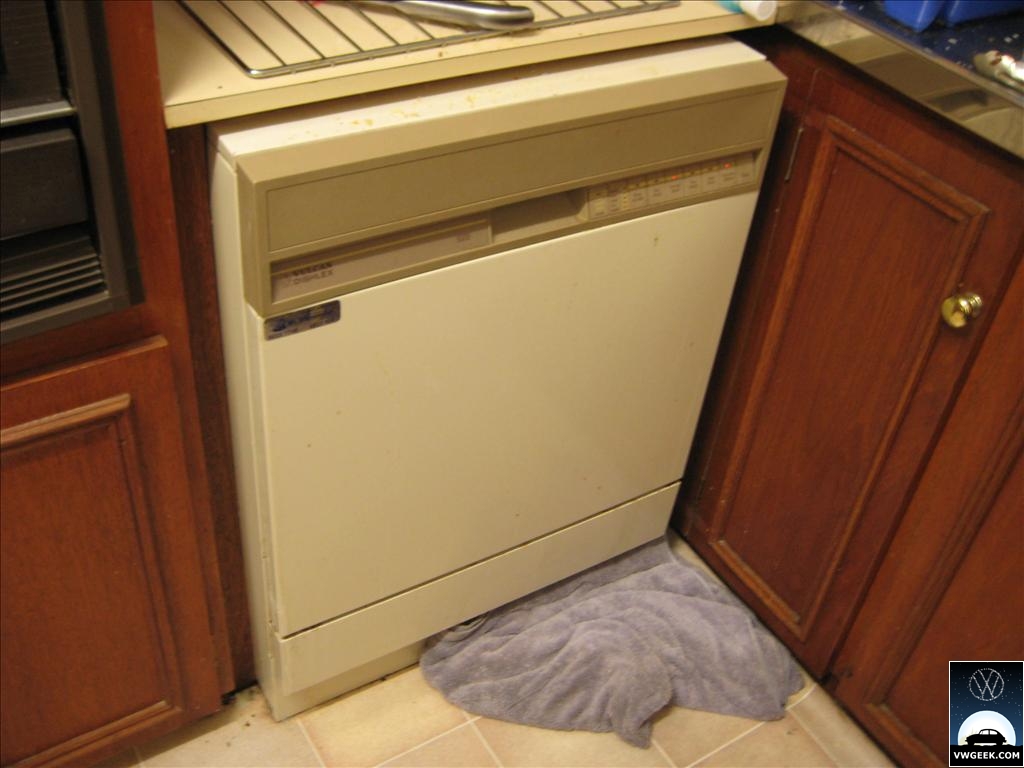

Oh yes the wondrous Dish washer, doing some research i found that the best tablets to clean the motor parts with are the Coles home-brand ones (like 15 in a packet). Supposedly these don’t have anything but soap in them and don’t harm metal stuff.

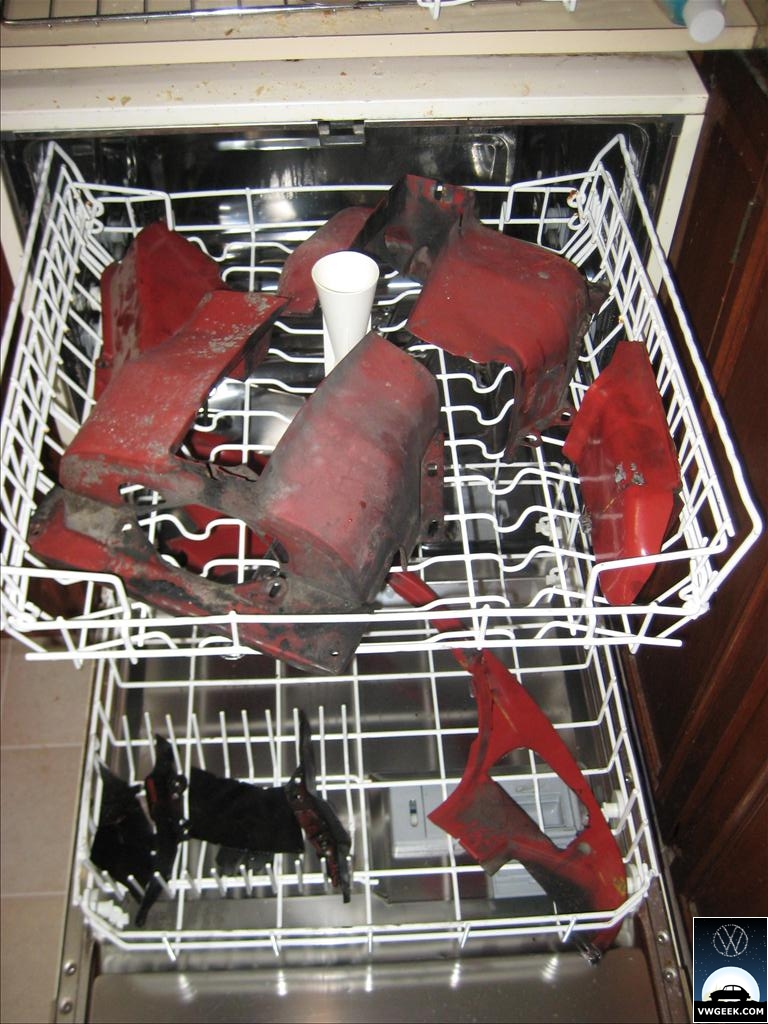

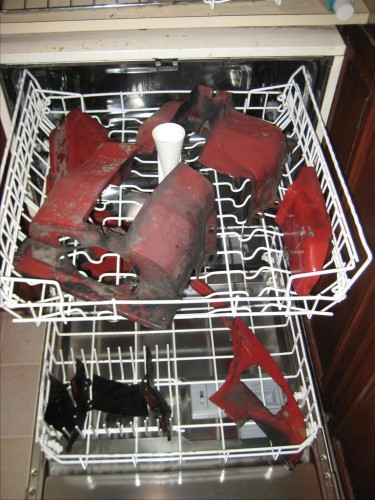

Trial 1, These parts. In short this didn’t work too well 🙁 But i decided to try it on something else..

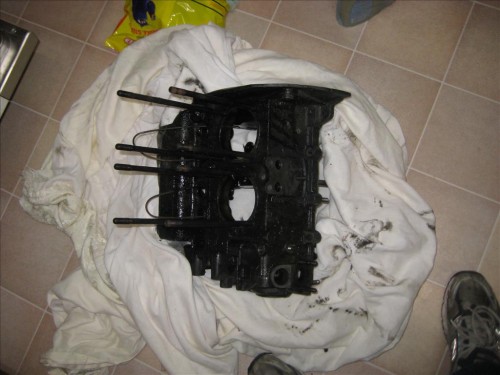

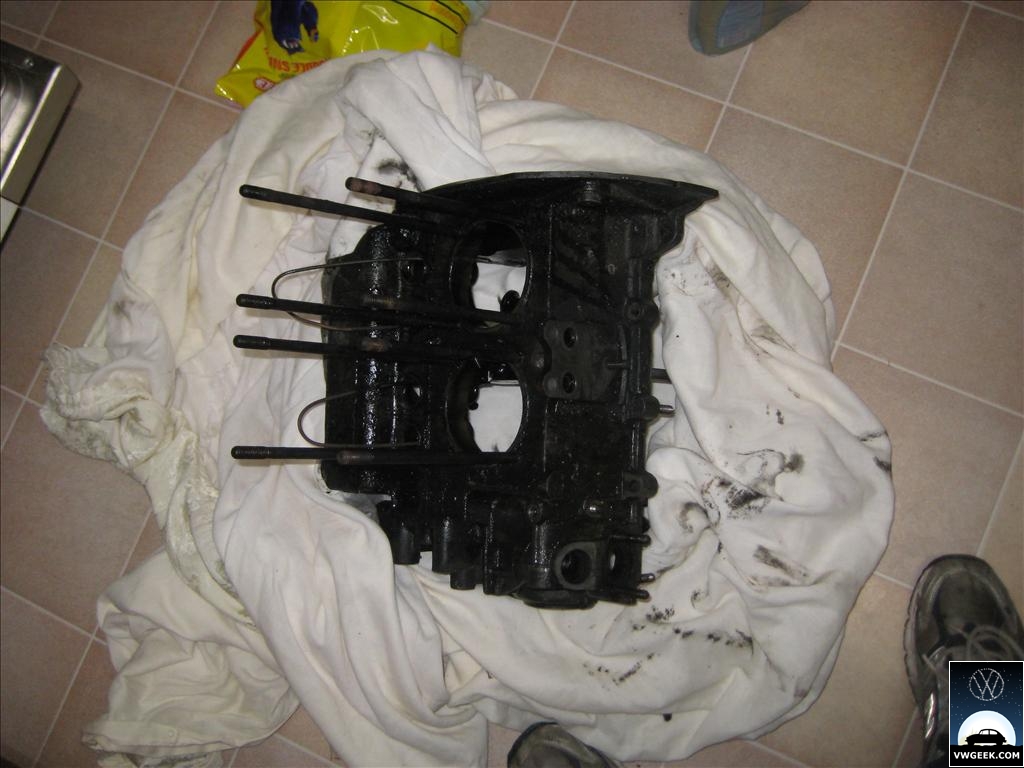

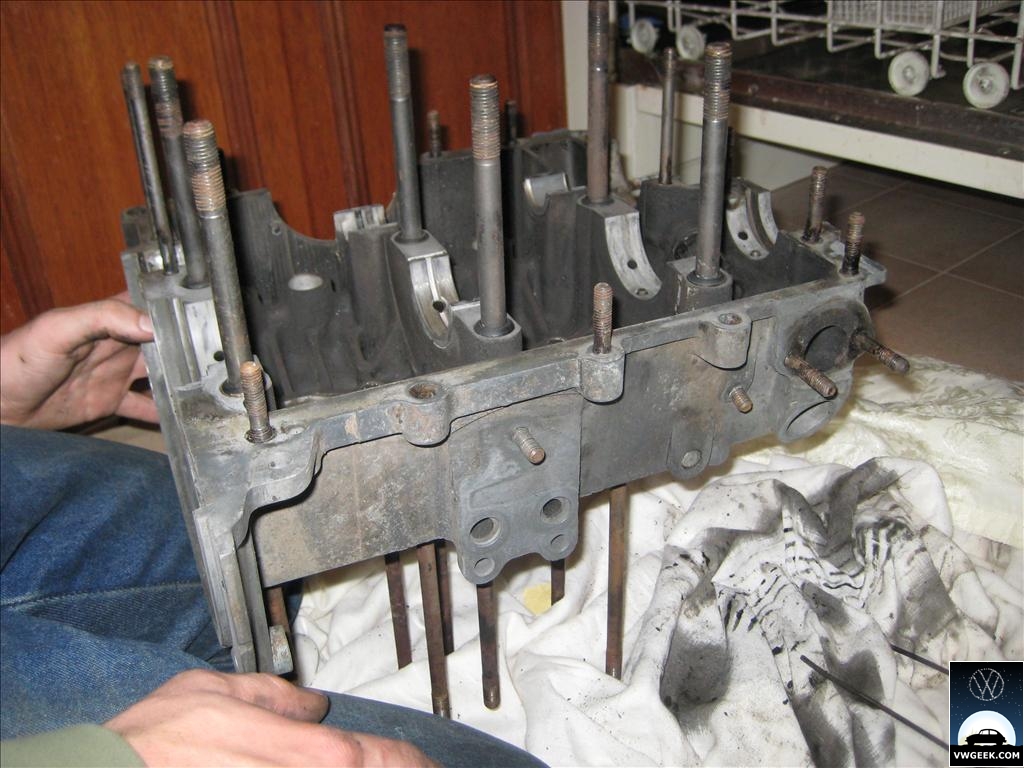

Yes its a disgusting (yet beautiful) 1600 dual port case.

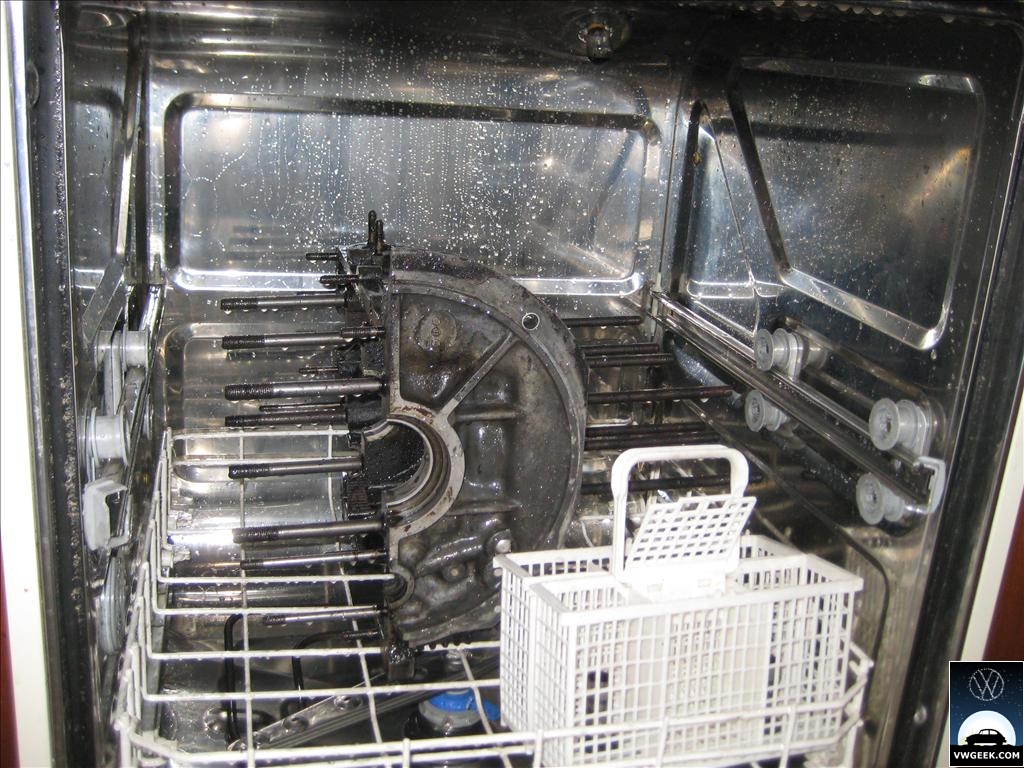

After 20 minutes of being in the wash.

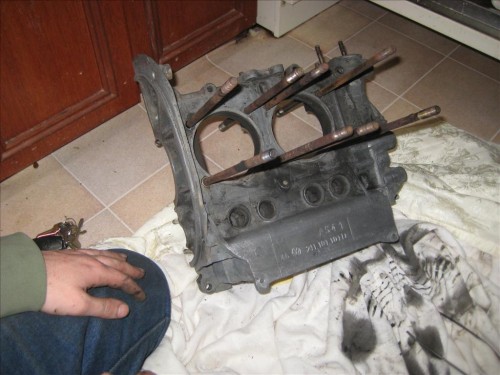

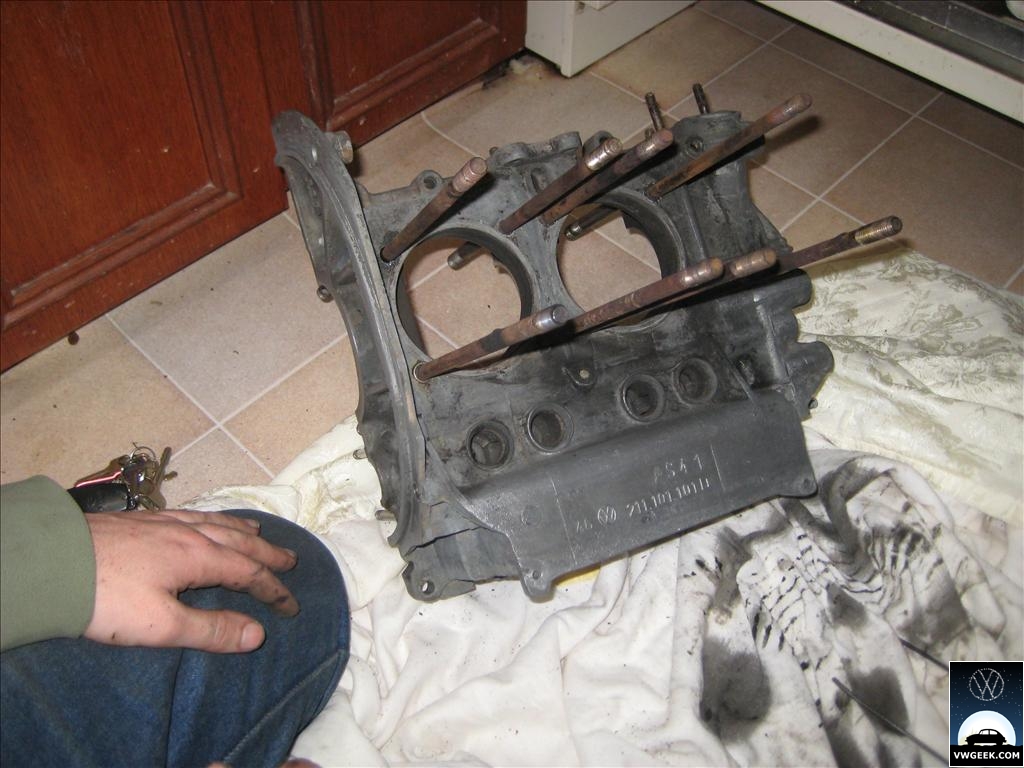

All clean,

I plan on giving the other side of the case a wash in petrol to try and compare the results.

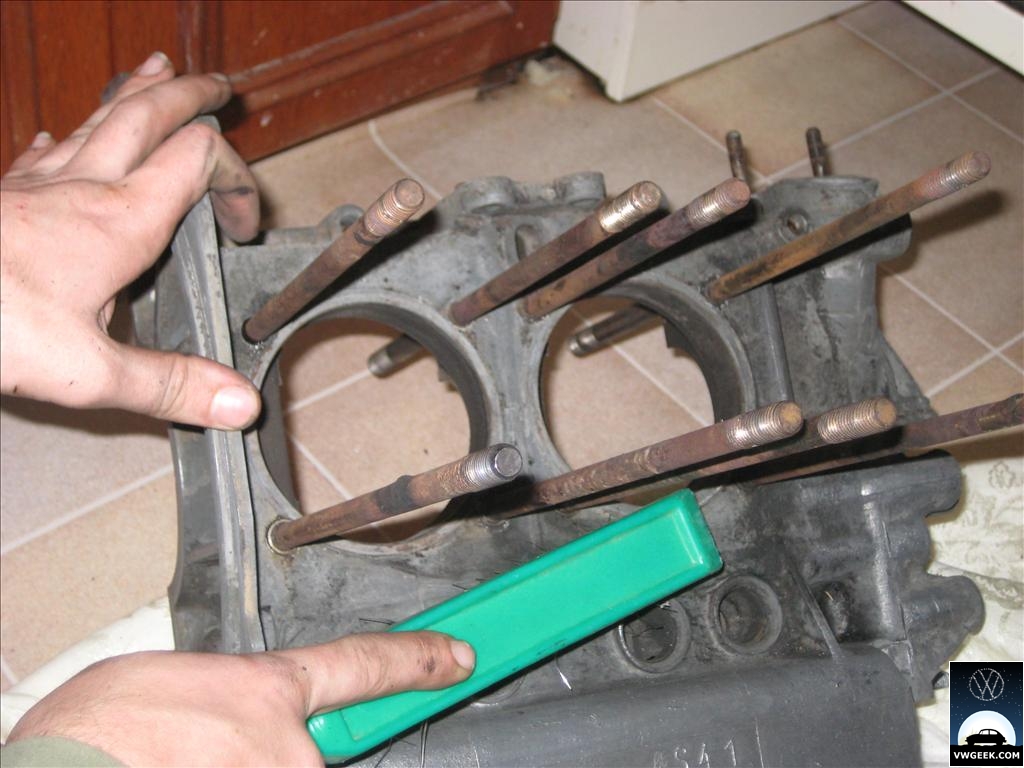

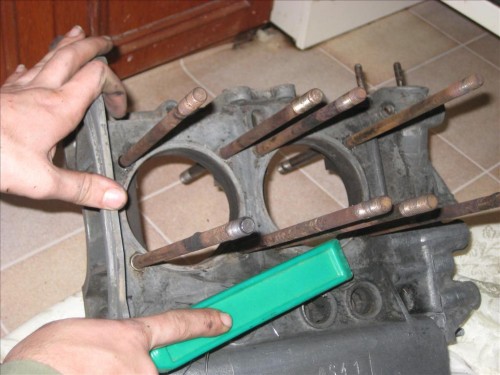

Using wire brush to get some more dirt off the case.

Now what i must quickly explain is if your going to do this make sure you have some WD40 handy for the distributor gears (ideally you should take them out but i couldn’t get mine out). I left it for a Day before putting WD40 on it and it almost seized up, but all in all i am now on a look out for a decent free washing machine to wash the various parts. (after finding out that the oil in the motor can normally be carcenagenic).

I also put the washing machine through with a clensing tablet after. Its also great for when the misses comes home she hears the dishwasher on and thinks your doign house work.. just dont let her open it to get a knife out.

To be continued.

Motor out and pulling apart.

There she is, on the great trolley dolly.

Tinware off, these photos arent just for you people out there they are for me so i can remember where everything went 😉

The infamous flex plate and its nut 36mm (grabbed the socket ordered in for me at sprint auto parts was only 25 bux). I found out that this is under 230 ft pounds of torque, so no normal torque wrench can undo it or even do it up. But first problem first, when the gland nut spins the whole flexplate spins, there exists an official tool to help you out here (i saw one for sale but it was $100usd) i decided to make my own.

So i used the original bolts that held the torque converter onto the plate and then just bolts that fit into the engine mount holes, I used 2 of them diagonally across from each other, but i would suggest maybe having 4 cause its fairly easy to bend and i almost did bend it.

Getting the gland nut off was killing me i couldn’t move it with 2 people helping (aka jumping on an extension for the ratchet), I decided to go out and buy a 1/2″ air ratchet (nice big bastard). I wasn’t sure if it would work we tried it and there was nothing, i went to the compressor and red lined the air, and sprayed WD40 on it with about a 30 second burst i saw the tiniest of movement, left if a few seconds and gave it a second go, pop off she came with much rejoicing.

At the same time i will talk about the supposedly easy removable pulley, i bought one of those pulley pullers after much searching, i gave it a go the puller creeked and the puller snaped in the middle, i thought “doesn’t anything happen the way it should” then i reminded myself its a VW. I grabbed 2 heavy duty G clamps and a big piece of flat steel, and started doing the clamps up, the metal bar bent, cut it in half and doubled it up and gave it a go and finally pop out it came.

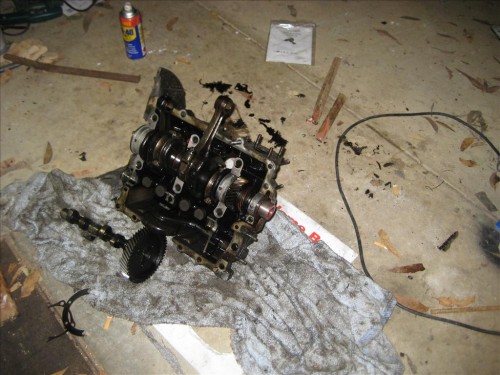

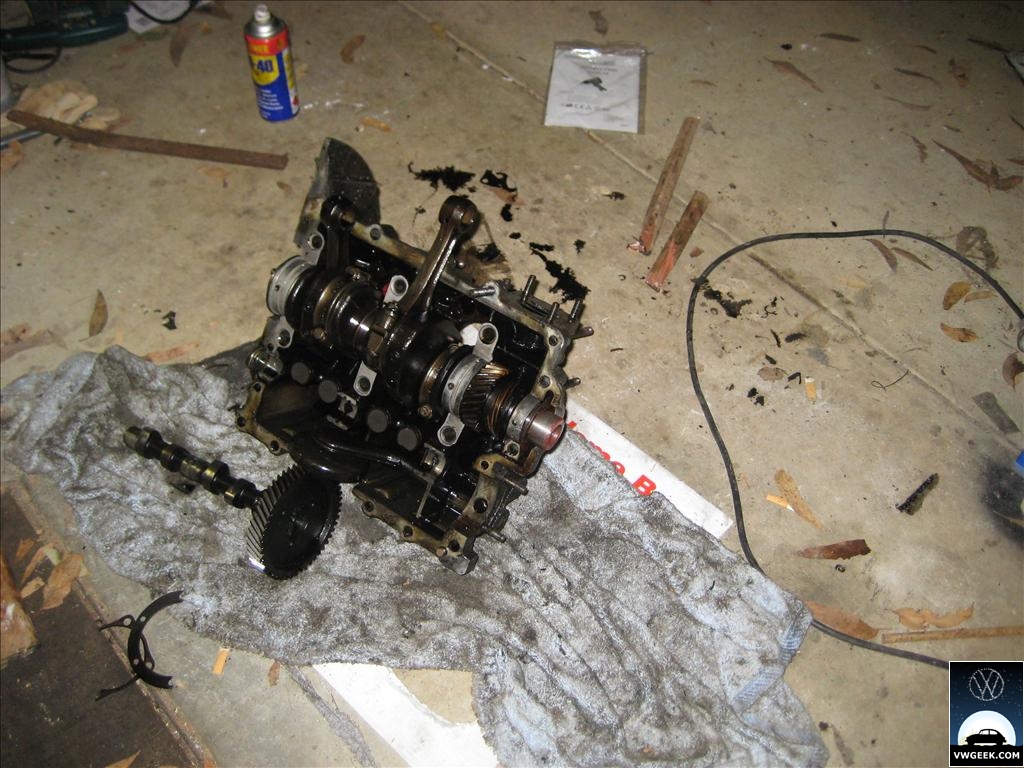

Finally in pieces, take note when pulling the automatic oil pump and normal oil pump out make sure you got both pieces out of the engine (other wise its a bit hard to pull the case apart. Also the oil strainer under the engine sump also appears to come out 😉

So this is the inside of the crank case where the bearings sit.. now the one on the LHS is worrying me and looks fairly worn.

Now am i looking for a reconditioned case? or can i grab some fine wet/dry sandpaper and carefully take it back a bit? Any help would be great.

That’s all for now, several cool new topics on there way.
